EAntenna 5070OWA9

April. The Sporadic E season is about to start. And since my last antenne for 50 and 70 MHz didn’t survive a storm it is time for a new one. This time I bought the 5070OWA9 fom EAntenna at the local Hamshop. It is a 4-element antenna for 50 MHz and a 5-element antenna for …

Continue reading

New 23cm antenna

Last week a new antenna for 23cm arrived. It’s the SHF-design 67-element (5 meter boom) from Wimo. It should give about 20 dBd gain and will replace the borrowed 23-elements Tonna. I hope that this beam, in combination with the Gemnini amp, gives me enough punch to work stations more than 500 kilometer away. I …

Continue reading

Storm :-(

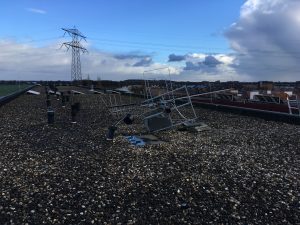

Last week, storm hit the Netherlands with speeds up till 128 km/h. My temporary mast went down. A new base is ready to be mounted. This time with more counterpose and guy wires. The Moxon for 50 and 70 MHz needs some new aluminium. Besides that (and the bent platform) no damage to the roof.

Antenna maintenance and QRV on 50/70 MHz

Last weekend I’ve performed some antenne maintenance. The LNA’s for 144 and 432 MHz are in place. I also mounted a small 15-elements antenna for 1296 MHz (23cm). During the contest last weekend I was able to make a QSO with Belgium, Germany and England with only 10 Watts of power and no LNA. I even …

Continue reading

VHF and UHF preamps

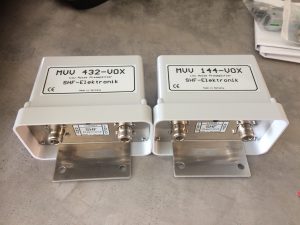

Today the preamps for 144 and 432 MHz arrived from Wimo. They are manufactured by the German SHF-Elektronik and powered via the coax-line (My Icom IC-9100 supports 12 volt over coax). Both units have a VOX unit so no need for a seperate PTT-line (for now). Now I only have to find some time to …

Continue reading

New rotatable tower

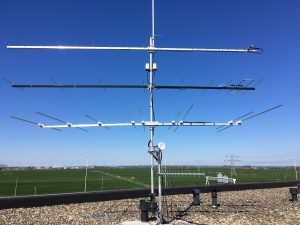

Today I’ve made some progress by replacing the antenna tower on the roof. It’s now rotatable. The Diamond X6000 has been replaced for the X5000 so the total length doesn’t exceed the 5 meter due to regulations to keep it license free without the need for a building permit. The 9-element LFA for 144 MHz and the …

Continue reading

Switching to vertical: First results

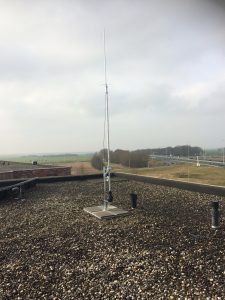

A few months back I switched from a magnetic loop antenna to a vertical one. There were two main reasons to do so. The first one is the ability to be able to remotely tune the antenna. With the I3VHF-loop I wasn’t able to. The second reason was to have support for the 80 (and soon …

Continue reading

Building Inverted-L

I’m busy building an inverted L antenna. Going about 10 meters up and 10 meters horizontal. This gives me the possibility to work on the 80-meter and 160-meter band, using a CG-3000 tuner. I’m currently using about 2x 12 meters of wire as counterpose. This will be a bit more in the near future, but …

Continue reading

MLA-T from the inside

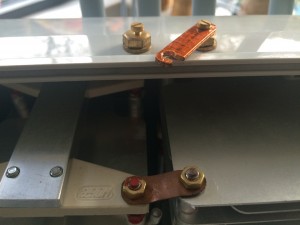

Some pictures from the MLA-T Magnetic Loop Antenna. You can see the stepper motor (with 1:600 delay), the feedlines from the N (Yes, N, not PL) connectors and the extension capacitor with shunt for operations on the 160-meter band.

New antenna for PI6ATS

PI6ATS, a locat ATV repeater, has a new VHF-antenne. The operators used an old indoor horizontal loop / halo antenna for audio reception on 144.7625 MHz. This wasn’t the best situation, since many people had a way stronger signal on 13cm then on VHF, if the repeater could receive a signal (1750 HZ tone) at …

Continue reading

Testing the MLA-T

After cleaning the garage yesterday, I found the – after one year still boxed – MLA-T Magnetic Loop Antenna. Hope to have time this weekend to test things out. First thing to do is find a good point to fix the coupling loop, since this model has no gamma match like mentioned on the Wimo …

Continue reading
