Icom IC-9700 and WSJT-X

The problem with new transceivers is the lack of support for drivers in programs like Ham Radio Deluxe, WSJT-X (OmniRig), N1MM+ and MicroHam drivers. Just to name some programs I juse often. After playing around I found a way using the IC-9700 with WSJT-X by emulating an IC-7300 wich has about the same architecture. My …

Continue reading

The new Icom IC-9700 is in

The frst batch of the new IC-9700’s arrived today at Hamshop. I was the first one to collect mine, ordered back in September 2017 hours after the announcement during the Tokyo Hamfest. After unboxing I notice the DIN connector is missing. From all Icom transceivers I’ve bought in the past, the DIN connector for accessoires …

Continue reading

Counting down till IC-9700

In a few weeks from now, the new Icom IC-9700 will arrive. The local HAMShop gave an estimate of beginning 2019. The Japanese manual is ready, but I’m still waiting for a translated English version. I had some questions about the new rig, but most of theme are answered. It does have +12 Volt bias …

Continue reading

DVB-S with ADALM PLUTO SDR

B5 picture using 0 dBm over 30km+ distance

Peter (PA3PM) started to do some experiments with the ADALM SDR. This type of SDR is available for about $100 and capable of transmitting and receiving – even full-duplex – between 70 MHz and 6 GHz with a bandwidth up to 56 MHz. It’s capable to make DVB-S (and DVB-T) transmissions out of the box. …

Continue reading

New amp coming in…

Today I’ve ordered a new SSPA amplifier. Now it’s for the 144 MHz band. I already bought a Gemini 180 Watt amp for 23cm in the past with the DXshop in the UK. After experiencing some issues with it, Roger (GW4WND) the owner of the shop, provided more than excellent service. And providing good service …

Continue reading

New 23cm antenna

Last week a new antenna for 23cm arrived. It’s the SHF-design 67-element (5 meter boom) from Wimo. It should give about 20 dBd gain and will replace the borrowed 23-elements Tonna. I hope that this beam, in combination with the Gemnini amp, gives me enough punch to work stations more than 500 kilometer away. I …

Continue reading

Storm :-(

Last week, storm hit the Netherlands with speeds up till 128 km/h. My temporary mast went down. A new base is ready to be mounted. This time with more counterpose and guy wires. The Moxon for 50 and 70 MHz needs some new aluminium. Besides that (and the bent platform) no damage to the roof.

Buying 23cm transceivers in Japan

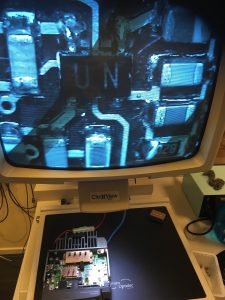

The 'UN' FET, which is a 3SK274. Thanks, Leo from radioamateurshop.nl.

Last week I’ve received a shipment with several 23cm capable transceivers from Japan. One was the Kenwood TM-541 and two others were Kenwood TM-833’s. The 833’s are quite unknown since there are only brought to the Japanese market. basically it’s the more familiar dual-band 733 but now with the bands 70cm/23cm.

Continue reading

23cm receiver PI6NOS

I’ve build an extra 23cm receiver for the regional 23cm repeater system PI6NOS in Hilversum. Building was quite straightforward. Just take a Raspberry Pi, an RTL-SDR stick and connect it to an antenna (using a band-pass filter not to overload the RTL-stick with crap). The repeater system is based on an svxlink controller so just …

Continue reading

Preparing 23cm station

I’m preparing my 23cm station. Last weekend I’ve made some QSO’s during the May contest but with a very limited set-up. Time to have some more punch. Onboartd is a Gemini SSPA easily capable of delivering 180 Watts. More than enough for the 120 Watt limit here in the Netherlands for bands above 1 GHz. Also …

Continue reading

Antenna maintenance and QRV on 50/70 MHz

Last weekend I’ve performed some antenne maintenance. The LNA’s for 144 and 432 MHz are in place. I also mounted a small 15-elements antenna for 1296 MHz (23cm). During the contest last weekend I was able to make a QSO with Belgium, Germany and England with only 10 Watts of power and no LNA. I even …

Continue reading

VHF and UHF preamps

Today the preamps for 144 and 432 MHz arrived from Wimo. They are manufactured by the German SHF-Elektronik and powered via the coax-line (My Icom IC-9100 supports 12 volt over coax). Both units have a VOX unit so no need for a seperate PTT-line (for now). Now I only have to find some time to …

Continue reading

New rotatable tower

Today I’ve made some progress by replacing the antenna tower on the roof. It’s now rotatable. The Diamond X6000 has been replaced for the X5000 so the total length doesn’t exceed the 5 meter due to regulations to keep it license free without the need for a building permit. The 9-element LFA for 144 MHz and the …

Continue reading

ATV station for 5700 MHz (6cm)

The new ATV station for 6cm consists of: 23cm UniTX transmitter for 1400 MHz uplink DG0VE Frequency multiplier DG0VE amplifier: 60 mWatt > 600 mWatt Final amplifier: 150 mWatt > 14 Watt SMA coax relay to switch between TX and RX RX converter 5,7 -> 1,0 GHz with pre-amp Some sensors for temperature, fan control, …

Continue reading

Hytera MD785(G) noise modification

The Hytera MD785(G) DMR transceiver works great out of the box, both analogue as digital. But there is one problem. Noise coming out of the speaker. Even when the tansceivers audio gain botton is set to zero. When the squelch opens, noise can be heard. There is no way to fix this in the firmware …
